Room Mode Calculator: Find Your Room's Problem Frequencies
An axial room mode sits at the speed of sound divided by twice the room dimension, so a 12 foot wall resonates at 1130 / 24 = 47.1 Hz, and again at every multiple: 94.2 Hz, 141.3 Hz and upward. A rectangular room has three of these series running at once, one per dimension, and where two of them land on the same frequency is where the room is loudest and least trustworthy.
Definition: A room mode is a frequency whose half-wavelength fits exactly between two parallel surfaces, so reflections reinforce the original wave and the room stores energy at that pitch.
This is the first thing to know about any room you intend to record or mix in, and it is knowable before you buy a single panel. Type your dimensions in. The calculator returns every axial mode up to 300 Hz, flags where two of them collide, and tells you which ones will actually be audible as a problem.
| Frequency | From | Order | What it does |
|---|
What is the formula, and why does it work?
An axial mode is the simplest kind: a sound wave bouncing straight back and forth between one pair of parallel surfaces. The frequency where this becomes a resonance is the one whose half-wavelength exactly spans the gap, because the reflection then arrives back in phase with the wave that produced it and adds to it instead of fighting it.
That gives you the formula, and it is genuinely this simple:
f = c / (2 x dimension), where c = 1130 ft/s or 343 m/s
So a room with a 12 ft wall has its first axial mode at 1130 divided by 24, which is 47.1 Hz. The second order mode fits a full wavelength in the same space and lands at 94.2 Hz, the third at 141.3 Hz, and so on. Multiply the fundamental by any whole number and you have another mode.
A rectangular room runs three of these series simultaneously, one for length, one for width and one for height. That is why the calculator gives you three columns of frequencies rather than one, and why the interesting information is not any single mode but where two of them land close together.
What about tangential and oblique modes?
They exist and this calculator does not list them, which is a deliberate choice worth explaining. A tangential mode bounces off four surfaces and a oblique mode off all six. Both are real, both add to the total count, and both are substantially weaker than axial modes: tangential modes carry roughly half the energy of an axial mode and oblique modes roughly a quarter, because each extra reflection loses energy into the boundary.
In a small room the axial modes are what you hear as a problem. They are the ones that make a bass note boom at the desk and disappear by the door. Listing the full modal set of a bedroom produces a hundred-row table where the useful information is in the first nine rows. If you want the complete set, the full Rayleigh equation accounts for all three types, but for deciding where to put speakers and traps the axial set is the actionable half.
Which modes actually matter in your room?
Not all of them, and this is where most room mode discussion goes wrong. Above a certain frequency, modes get so densely packed that they stop behaving as individual resonances and start behaving as a diffuse field. That crossover is the Schroeder frequency, and the calculator gives it to you.
Below the Schroeder frequency, your room is a resonant box and individual modes matter enormously. Above it, the room behaves statistically and ordinary broadband absorption is the right tool. In a typical spare bedroom the Schroeder frequency lands somewhere between 150 and 250 Hz, which means everything below roughly the bottom two octaves of a bass guitar is modal territory and everything above it is not.
The practical filter: look at the modes under about 120 Hz, and look for two that land within a few hertz of each other. A single mode at 47 Hz is normal. Two modes at 47 and 48 Hz stacked on top of each other is a room that will lie to you about bass.
The mistake I made for years was treating this as an academic exercise and then buying panels anyway. It is the opposite. The calculator tells you what the room is going to do before you spend anything, and the most valuable thing it usually reveals is that your listening position is sitting in a null. Moving the desk costs nothing and routinely does more for the low end than the first four hundred dollars of treatment. Run the numbers first, move the furniture second, buy panels third.
How do you fix a room mode?
In descending order of how much improvement you get per dollar spent:
- Move the listening position. Free. Every mode has a pressure maximum at the walls and a null at the midpoint. Sitting at exactly 50 percent of the room length puts you in the null of the first length mode, which is the classic "where did the bass go" problem. The usual starting point is 38 percent of the room length from the front wall.
- Move the speakers. Also free. A monitor pushed hard into a corner couples into all three axial series at once and can add 6 dB or more of uneven boost. Our speaker placement calculator works out the boundary distances for you.
- Corner bass traps. Corners are where every mode has a pressure maximum, so absorption there works on all of them at once. This is why corner traps outperform the same volume of material spread flat on a wall.
- Thick broadband panels at the first reflection points. Two inches minimum, four inches if the room can spare it, and gapped off the wall. The treatment calculator gives you the square footage your room actually needs.
What does not work: thin foam. A 100 Hz wave is 11.3 ft long, and a porous absorber does its best work at a quarter wavelength from the boundary, which for 100 Hz is 2.8 ft out from the wall. One inch of foam glued flat to drywall is 0.7 percent of that distance. It will take the flutter echo off your handclap and it will do nothing whatsoever about the note that booms.
If you only buy one category of treatment, buy corner traps, and buy them before panels. The corners are where the modal energy concentrates, which makes them the highest-value real estate in any small room. Compare the options in our acoustic treatment roundup, or work through the full plan in the room treatment guide.
What room dimensions should you look for?
If you have a choice of rooms, the ratio between the three dimensions matters more than the raw size. You want the three axial series to interleave rather than stack. Several published ratio sets exist for exactly this, and while the differences between them are small, all of them agree on what to avoid.
| Ratio set | Ratio | Room at 8 ft ceiling | Why it is used |
|---|---|---|---|
| Sepmeyer A | 1 : 1.14 : 1.39 | 8 x 9.1 x 11.1 ft | Tight rooms, evens out a low ceiling |
| Sepmeyer B | 1 : 1.28 : 1.54 | 8 x 10.2 x 12.3 ft | The common spare-bedroom target |
| Louden | 1 : 1.4 : 1.9 | 8 x 11.2 x 15.2 ft | Best modal spread of the classic sets |
| Boner | 1 : 1.26 : 1.59 | 8 x 10.1 x 12.7 ft | Cube-root spacing, no exact multiples |
| Golden ratio | 1 : 1.62 : 2.62 | 8 x 13 x 21 ft | Popular, needs a long room to use |
| The cube | 1 : 1 : 1 | Avoid entirely | All three series stack on one frequency |
Two rules survive from all of that. First, no dimension should be a whole-number multiple of another, because a 16 ft length with an 8 ft ceiling puts a length mode and a height mode on the same frequency. Second, a cube is the worst possible case and a room with two equal dimensions is the second worst. If your room is one of those, the answer is not despair, it is heavier corner treatment and a listening position chosen with the calculator rather than by where the desk fits.
How to read the results table
Each row is one mode: its frequency, which dimension produced it, which harmonic it is, and a short note on what it will do to your monitoring. The rows flagged as pileups are two or more modes landing within about 5 Hz of each other, which is where you will hear a genuine boom rather than a mild lift. Those are the frequencies to remember when a mix keeps coming back with too much or too little in the same spot.
Cross-check the result against the room modes by dimension chart if you want the numbers for common room sizes without typing anything, and against the instrument frequency range chart to see which instruments live at your problem frequencies. A 47 Hz mode sits right on the low E of a bass guitar, which is precisely why bass parts are the first thing a bad room ruins.
Related tools
- Speaker placement calculator: where to put the monitors and the chair once you know the modes
- Acoustic treatment calculator: how much absorption your room actually needs
- Studio build cost calculator: what treating the room will cost
- How to treat a room: the full plan, in the order it should be done
Frequently asked questions
How do you calculate room modes?
The first axial mode along any dimension is the speed of sound divided by twice that dimension. In feet that is 1130 divided by two times the length, so a 12 foot wall gives 1130 divided by 24, which is 47.1 Hz. Every whole-number multiple of that figure is also a mode, so the same wall also resonates at 94.2 Hz, 141.3 Hz and upward. A rectangular room has three axial sets, one per dimension.
What is a room mode in plain terms?
A room mode is a frequency whose wavelength fits neatly between two parallel surfaces, so the reflected wave lines up with the original and reinforces it. At that frequency the room stores energy: some spots in the room get much louder, other spots get much quieter, and the note rings on after the source stops. It is the reason a bass line can sound huge at the desk and vanish two feet to the left.
Why do two of my room dimensions give the same mode frequency?
Because they are the same length, or one is a whole multiple of the other. A room that is 10 by 10 feet stacks two identical axial series on top of each other, which doubles the energy at 56.5 Hz instead of spreading the problem out. This is the single strongest argument against a cubic room, and it is also why a 16 foot dimension paired with an 8 foot ceiling concentrates trouble at 70.6 Hz.
Can acoustic treatment fix room modes?
Partly. Broadband absorption in the corners genuinely reduces how long a mode rings, which is the audible half of the problem. It does not move the mode frequency, because that is set by the geometry, and thin panels do almost nothing below about 200 Hz. Expect to tame a mode, not to delete it. Moving the listening position and the speakers usually buys more improvement per dollar than the first four panels do.
What is the worst room shape for recording?
A cube, and a room where one dimension is an exact multiple of another. Both stack modes at the same frequencies rather than distributing them. A 10 by 10 by 10 foot room concentrates all three axial series at 56.5 Hz. Adding treatment to a room like that helps, but the underlying pileup remains, which is why the ratio matters more than the raw size.
Do room modes matter if I only mix on headphones?
Less, but not zero. Headphones bypass the room entirely for playback, so the modes stop colouring what you hear while mixing. They still affect anything you record with a microphone in that room, because the microphone hears the mode too and prints it into the file. A room mode captured in a vocal take is permanent in a way a monitoring problem is not.

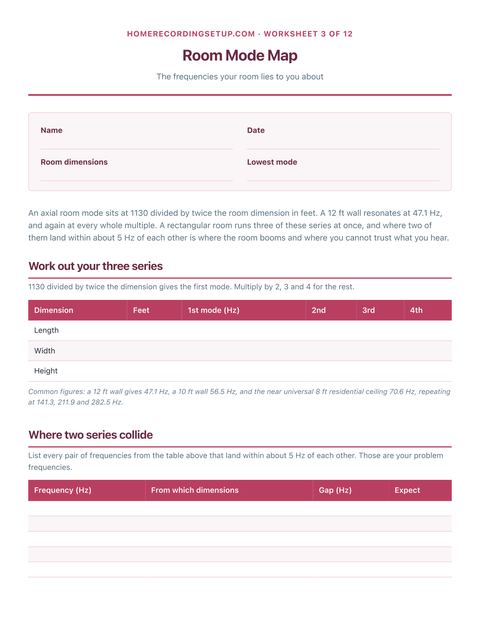

Working out your own room and signal chain? The Home Studio Build Planner is the paid version of these pages: 8 printable worksheets you fill in with your own numbers, plus the full PDF, $29.
